4U 24-bay High-Density Expandable NAS Server
LucidFiler RN2424 offers rackmountable data storage server with simple management at a competitive price. Designed with the needs of a growing business in mind, it offers an easy-to-manage, “building block” appliance with excellent storage capacity to build out your storage infrastructure. Network-attached storage allows everyone – servers and clients – to access the same data pool simultaneously while the web interface gives you administrative control of your appliance from any web-enabled device, making data management that much more convenient.
The LucidFiler RN2424 server is powered by the LucidNAS storage software and features ZFS filesystem support which includes data integrity protection, periodic snapshots, automatic repair, and RAID-Z to help manage and store your critical files safely and corruption-free.

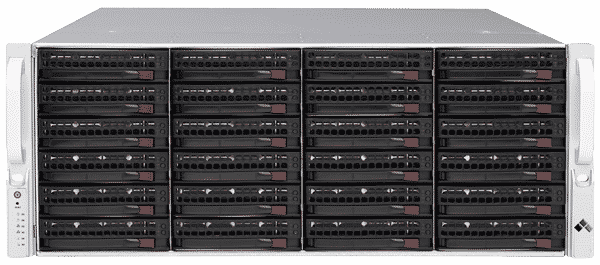

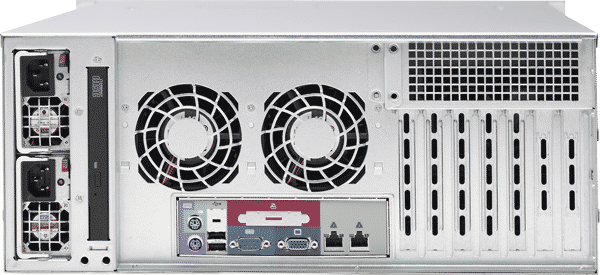

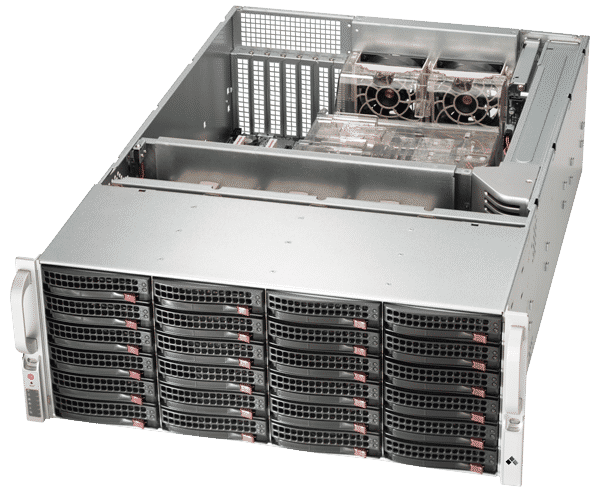

LucidFiler RN2424 24-bay Rackmount NAS
Flexible expandable storage.
PRODUCT IMAGES
-
-
-
-
- LucidFiler NAS Features Slider
- Twenty four drive bays – up to 72TB of data storage capacity
- Software mirroring, RAIDZ, RAIDZ2, or RAIDZ3 configuration
- 64-bit Quad-Core Intel Xeon processor
- 16GB of DDR3 memory upgradeable to 512GB
- 4 x 1GbE Network interface (Onboard) – Optional 10GbE ports available
- Dual Redundant 920W High-Efficiency power supplies
- Unified Storage – iSCSI block-level and SMB / NFS file-level access
- Simultaneous support for Windows, UNIX, and Apple shares
- 4U Expandable Unified Storage Server
- Dual Intel® Xeon® processor E5-2600 family
- 24 Hot-swap 3.5″ SAS2 (with LSI expander) / SATA3 HDD Bays
- IT mode/HBA with support for up to 122 Drives
- 16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
- 5 (x8) PCI-E 3.0 expansion slots
- I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
- System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
- 3 heavy duty fans w/ optimal fan speed control
- 920W Redundant Platinum Level Power Supplies
| Software Specifications | |
|---|
| Filesystem | • 128-bit Zettabyte File System
• Unlimited filesizes
• Unlimited snapshots
• Copy-on-write clones
|
| Data Protection | • Multiple RAID Protections – Striping, N-way mirroring, RAID-Z(single parity), RAID-Z2(double parity), RAID-Z3 (triple parity)
• File cloning
• End-to-end checksumming
|
| Hardware Support | • SAS & SATA Drive Support (traditional and solid state/flash)
• Hot Spare Drive Support
• SMP—Multiple CPU / Multiple Core Support
• Gigabit and 10 Gigabit Ethernet Support
• Multiple Load Balancing / Failover NIC Support
• Infiniband Support
|
| Network Protocols | • NFS (UNIX-based clients)
• CIFS/SMB (Windows-based clients)
• AFP (Apple-based clients)
• iSCSI (block level access / Storage Area Network)
• HTTP / SSH / FTP / SMTP
|
| Hardware Technical Specifications |
| Chassis |
| Form Factor | 4U Rackmount |
| Processor/Cache |
| CPU | Intel® Xeon® processor E5-2600 |
| Dual Socket R (LGA 2011) |
| Cache | Up to 20MB |
| System Bus | QPI up to 8 GT/s |
| System Memory |
| Memory Capacity | 16x 240-pin DDR3 DIMM sockets |
| Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) |
| Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C602J Chipset |
| SATA | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 |
| SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| SAS | SAS2 via LSI 2308; IT Mode/Pass-through |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Nuvoton WPCM450 BMC |
| Network Controllers | Intel® i350 Gigabit Ethernet |
| Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | Matrox G200eW |
| Input / Output |
| Serial ATA | 2x SATA 3.0 ports (6Gbps) |
| 4x SATA 2.0 ports (3Gbps) |
| SAS | 8x SAS2 ports (6Gbps) |
| LAN | 4x RJ45 Gigabit Ethernet LAN ports |
| 1x RJ45 Dedicated IPMI LAN port |
| JBOD | 2x JBOD Expansion Port |
| USB | 9x USB 2.0 ports total |
| (4 rear + 4 via header + 1 Type A) |
| VGA | 1x VGA port |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header |
| Dimensions |
| Width | 17.2" (437mm) |
| Height | 7" (178mm) |
| Depth | 26" (660mm) |
| Gross Weight | 92 lbs (41.7 kg) |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power status LED |
| Hard drive activity LED |
| 2x Network activity LEDs |
| System Overheat LED |
| Power fail LED |
| Expansion Slots |
| PCI-Express | 5x PCI-E 3.0 x8 slots (Full-height, Half-length) |
| Drive Bays |
| Hot-swap | 24x Hot-swap 3.5" SAS/SATA HDD trays |
| Optional OS Drive | 2x Rear 2.5" Hot-swap Drive Bays |
| System Cooling |
| Fans | 3x 80mm Hot-swap 4-pin PWM Fans
2x 80mm Rear-exhaust 4-pin PWM Fans |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
| 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: |
| -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: |
| 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: |
| 5% to 95% (non-condensing) |
- Fileserver
- NFS Datastore
- DVR / Video Surveillance
- Datastore for vmWare, Xen, VirtualBox Virtual Machines
- Database Server
