Compact Tower NAS Appliance
LucidFiler TN400 offers compact data storage with simple management at a price any company can afford. Designed with the needs of a small business in mind, it offers an easy-to-manage, low-power, and nearly silent “place anywhere” appliance with excellent storage capacity to give your businesses an operational advantage. Network-attached storage allows everyone – servers and clients – to access the same data pool simultaneously while the web interface gives you administrative control of your appliance from any web-enabled device, making data management that much more convenient.
The LucidFiler TN400 appliance is powered by LucidNAS software and features ZFS filesystem support which includes data integrity protection, periodic snapshots, automatic repair, and RAID-Z to help manage and store your critical files safely and corruption-free.
LucidFiler TN400 4-bay Tower NAS
Small yet versatile storage appliance.

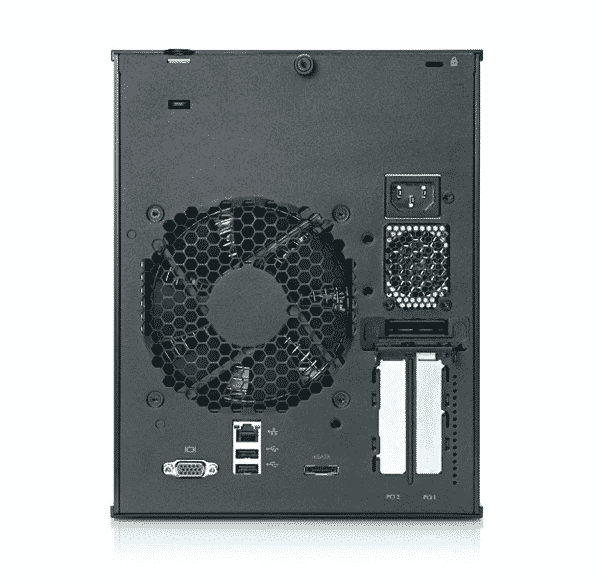

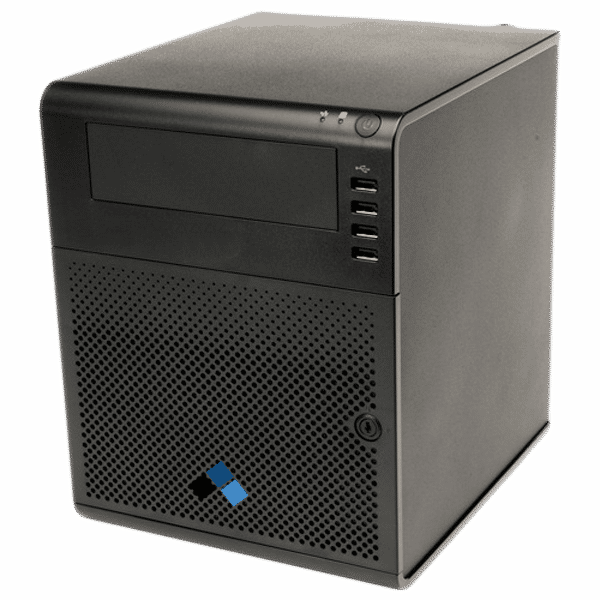

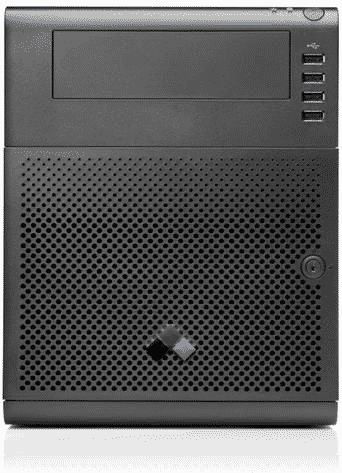

PRODUCT IMAGES
- Four drive bays – up to 12TB of data storage capacity
- Software mirroring, RAIDZ, RAIDZ2, or RAIDZ3 configuration
- 64-bit Dual-Core Low-Power AMD processor
- 8GB of DDR3 memory upgradeable to 16GB
- 1 x 1GbE Network interface (Onboard) – Optional second 1GbE port available
- Single 150W (200W peak) High-Efficiency power supply
- 4TB, 8TB, and 12TB models available
- Simultaneous support for Windows, UNIX, and Apple shares
| General |
| Type | Server |
| Form Factor | Ultra micro tower |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 1-way |
| Swappable Bays Qty | 4 |
| Front Accessible Bays Qty | 1 |
| Processor / Chipset |
| CPU | Dual-Core AMD Turion II Neo 1.5 GHz |
| 64-bit | Yes |
| Cache Memory |
| Installed Size | L2 cache - 2 MB |
| Cache Per Processor | 2 MB ( 2 x 1 MB ) |
| RAM |
| Installed Size | 8 GB / 16 GB (max) |
| Technology | 800 MHz PC3-10600 DDR3 SDRAM - Unbuffered ECC |
| Form Factor | DIMM 240-pin |
| Configuration Features | 2 x 4 GB |
| Hard Drives |
| Form Factor | 3.5" HDD |
| Capacity | Up to 3TB per drive |
| Interface Type | SATA-300 |
| Spindle Speed | 7200 rpm |
| Storage Controller |
| Type | 1 x SATA - integrated |
| Controller Interface Type | SATA-300 |
| Graphics Controller |
| Type | Integrated |
| Graphics Processor | Shared video memory (UMA) |
| Max Allocated RAM Size | 128 MB |
| Video Interfaces | VGA |
| Networking |
| Type | Integrated |
| Interface (Bus) Type | PCI Express x1 |
| Ethernet Controller | NC107i |
| Data Link Protocol | 10/100/1000 Mb/sec Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Expansion / Connectivity |
| Bays | 1 x external 5.25" x 1/2H |
| 4 x 3.5" LFF |
| Slots | 1 x PCIe 2.0 x16 - half-length, low-profile |
| 1 x PCIe 2.0 x1 - half-length, low-profile |
| Interfaces | 1 x VGA |
| 6 x USB 2.0 ( 2 front, 4 rear ) |
| 1 x LAN (Gigabit Ethernet) |
| 1 x eSATA-300 (expansion) |
| Miscellaneous |
| Features | System password |
| Compliant Standards | ACPI 2.0, FCC Class B certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438 |
| Power |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) autosensing |
| Power Provided | 150 Watt |
| Operating System / Software |
| Pre-installed | LucidNAS OS |
| Others | Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 Standard, Microsoft Windows Small Business Server 2011 Essentials |
| Warranty |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - parts - 1 year - response time: next day |
| Dimensions & Weight |
| Width | 8.3 in |
| Depth | 10.2 in |
| Height | 10.5 in |
| Weight | 13.2 lbs |
| Environmental Parameters |
| Min. / Max. Operating Temperature | 50 °F / 95 °F |
| Acoustics | 22dBa |
| Humidity Range Operating | 10 - 90% |
- General Purpose Server
- DVR / Video Surveillance
- Datastore for vmWare, Xen, VirtualBox Virtual Machines
- Branch Office Fileserver
