Host Bus Adapters for systems requiring higher performance
The PCI Express 3.0-based HBAs are designed to provide state-of-the-art connectivity for servers and NAS / SAN appliances with internal storage and the ability to add external storage JBODs, helping to enable fast signaling for high-bandwidth applications. What’s more, these products offer higher performance limits than prior SAS HBAs. The form factor, cabling and drivers all help enable an easy migration from legacy models. The PCIe 3.0 host interface doubles any bandwidth constraints that may have existed in PCIe 2.0 based motherboards.

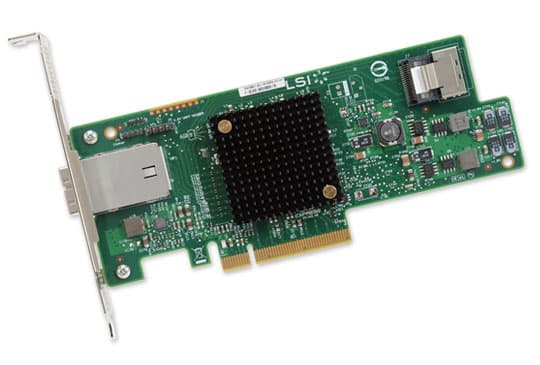

LSI 9207-4i4e SAS HBA
High-Performance PCIe 3.0 Adapter
| Features | Benefits |
|---|
| Features | Benefits |
| Four internal and Four external 6Gb/s SAS +SATA ports | Designed to provide state of the art connectivity for servers and NAS appliances with internal storage and the ability to add external storage |
| 8 lanes, PCI Express 3.0 | 8 lanes of PCI Express 3.0 provides faster signaling for high-bandwidth applications |
| Low-profile form-factor design | High performance with 6Gb/s data transfer rates |
| One x 4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088) | |
| LSISAS2308 6Gb/s SAS+SATA Controller | |
| Support for up to 256 SAS or SATA end devices | |
| Fusion-MPT™ 2.0 architecture can achieve more than 700,000 I/Os per second | |
| Supports major operating systems | |
| RoHS compliant | |
| Three-year standard warranty | |
| Technical Specifications | |
|---|
| Technical Specifications | |
| IO Controller | LSI SAS2308 / Fusion MPT 2.0 |
| Storage Connectivity; Data Transfer Rates | 8 ports, 6Gb/s SAS 2.1 Compliant |
| SAS Bandwidth | Half Duplex
600 MB/s per lane |
| Port Configurations | 4 ea, x1 internal ports (individual drives);
4 ea, x1 external ports
1ea, x4 external wide port |
| Host Bus | x8 lane, PCI Express 3.0 compliant |
| PCI Data Burst Transfer Rates | Half Duplex
x8, PCIe, 8000 MB/s |
| Connectors | One x 4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088) |
| Device Support | 256 Non-RAID SAS/SATA devices |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD |
| Warranty | 3 years / advanced replacement |

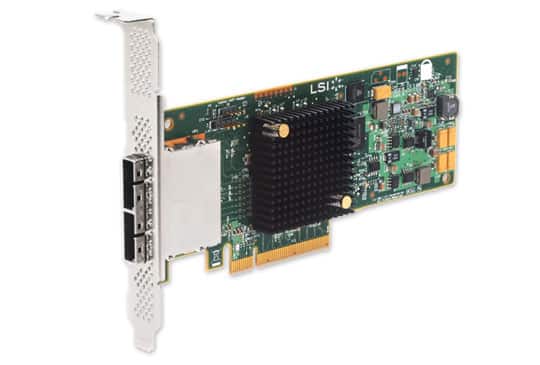

LSI 9207-8e SAS Host Bus Adapter
High-Performance 8-port Adapter
| Features | Benefits |
|---|
| Features | Benefits |
| 8 external 6Gb/s SAS+SATA ports | Maximum connectivity and pefromance in a low profile form factor |
| Two, x4 external SFF8088 Mini-SAS connectors | 8 lanes of PCI Express 3.0 provides faster signaling for high-bandwidth applications |
| Low-profile form-factor design | High performance with 6Gb/s data transfer rates |
| Supports up to 1024 SAS or SATA end devices | |
| LSISAS2308 6Gb/s SAS+SATA Controller | |
| Supports SSDs, HDDs, and tape devices | |
| Fusion-MPT™ 2.0 architecture can achieve more than 700,000 I/Os per second | |
| Supports major operating systems | |
| RoHS compliant | |
| Three-year standard warranty | |
| Technical Specifications | |
|---|
| Technical Specifications | |
| IO Controller | LSI SAS2308 / Fusion MPT 2.0 |
| Storage Connectivity; Data Transfer Rates | 8 ports, 6Gb/s SAS 2.1 Compliant |
| SAS Bandwidth | Half Duplex
600 MB/s per lane |
| Port Configurations | 8 ea, x1 ports (individual drives)
2 ea, x4 wide ports |
| Host Bus | x8 lane, PCI Express 3.0 compliant |
| PCI Data Burst Transfer Rates | Half Duplex
x8, PCIe, 8000 MB/s |
| Connectors | Two Mini-SAS external connectors (SFF8088) |
| Device Support | 1024 Non-RAID devices |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD |
| Warranty | 3 years / advanced replacement |
